Overview
Transporting heavy industrial equipment safely requires more than a standard pallet. This project involved designing a custom forklift pallet frame capable of supporting substantial loads while remaining lightweight, durable, and cost-effective to manufacture.

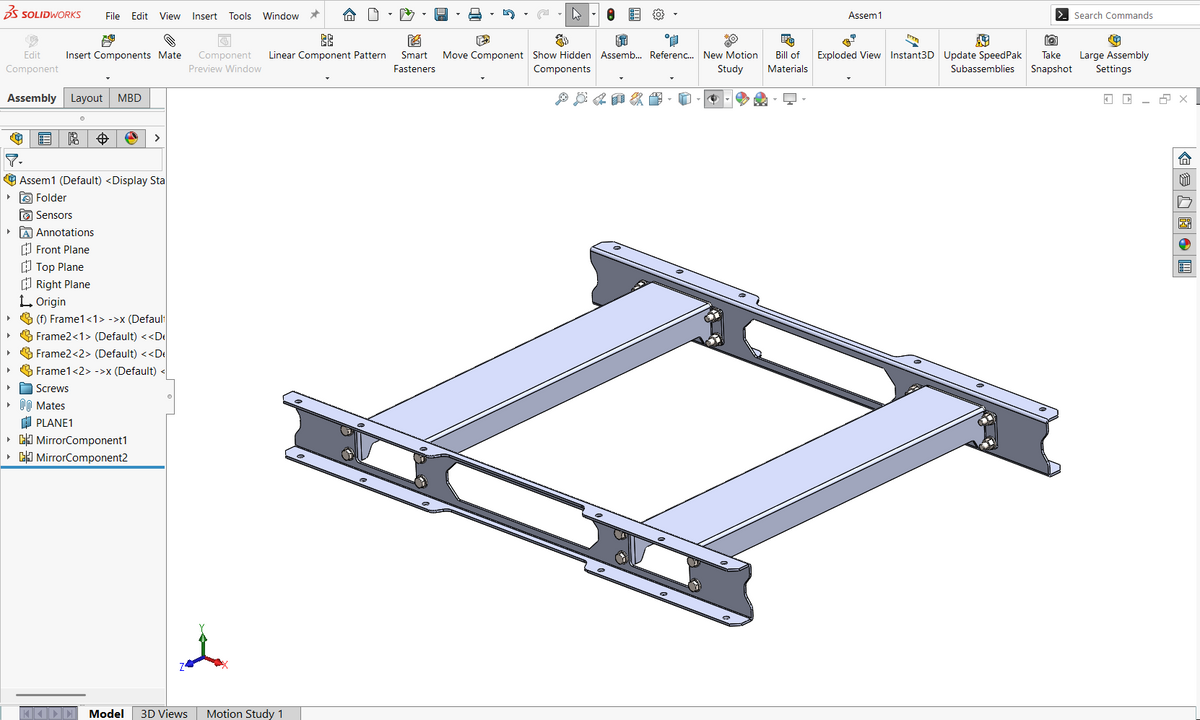

Developed entirely in SolidWorks, the frame combines laser-cut sheet metal side rails with structural steel cross members to create a rigid platform suitable for repeated forklift handling in industrial environments. The design was optimized for fabrication, assembly efficiency, and long-term structural performance.
Project Objectives
The client required a custom pallet frame that would:
- Safely support heavy industrial equipment
- Allow easy forklift handling from multiple directions
- Minimize overall weight without sacrificing strength
- Reduce fabrication costs
- Utilize standard manufacturing processes
- Be delivered with complete production-ready documentation
Engineering Challenges
Designing industrial transport frames involves balancing structural strength with manufacturing efficiency. Several engineering considerations were addressed throughout the project:
- Preventing excessive frame deflection under heavy loads
- Optimizing material usage to reduce weight
- Ensuring compatibility with standard forklift forks
- Designing components suitable for laser cutting and press brake forming
- Creating a modular assembly for simplified fabrication and maintenance
Each design decision focused on improving durability while keeping manufacturing practical and economical.
Design Solution
The final design features two fabricated sheet metal side rails connected by structural rectangular steel tube cross members. This combination provides excellent stiffness while reducing unnecessary material compared to fully welded plate constructions.
Bolted cross-member connections simplify assembly and allow individual components to be replaced if damaged during service.
Large laser-cut openings within the side rails reduce weight while maintaining structural integrity through strategically positioned flanges and reinforcing geometry.
The result is a fabrication-ready pallet frame that delivers strength, reliability, and ease of manufacturing.
Key Features
- Custom forklift pallet frame
- Heavy-duty structural design
- SolidWorks 3D CAD assembly
- Laser-cut sheet metal side rails
- Structural steel tube cross members
- Bolted modular construction
- Lightweight optimized geometry
- Manufacturing-ready engineering drawings
- Fabrication-friendly design
- Design for Manufacturing (DFM) optimization
Manufacturing Considerations
The pallet frame was specifically designed for efficient production using standard fabrication methods.
Manufacturing Process
- CNC Laser Cutting
- Press Brake Forming
- Structural Steel Tube Cutting
- Drilling and Machining
- Mechanical Assembly
- Surface Finishing (Powder Coating or Painting)
Using standard fabrication techniques helps reduce manufacturing costs while maintaining high dimensional accuracy.
CAD Deliverables
The project included a complete set of production-ready engineering documentation:
- Complete SolidWorks Assembly
- Individual Part Models
- Sheet Metal Flat Patterns
- Assembly Drawings
- Fabrication Drawings
- Bill of Materials (BOM)
- STEP Files
- DXF Files
- PDF Manufacturing Drawings
These deliverables allow manufacturers to proceed directly to fabrication with minimal additional engineering effort.
Applications
This type of pallet frame is suitable for a wide range of industrial applications, including:
- Industrial Equipment Transportation
- Machine Bases
- Manufacturing Equipment
- Material Handling Systems
- Heavy Machinery Support
- Battery Pack Transportation
- Warehouse Logistics
- Industrial Storage Systems
Software Used
- SolidWorks
- SolidWorks Sheet Metal
- Assembly Design
- Engineering Drawings
Why Design for Manufacturing Matters
Every design decision was made with manufacturing efficiency in mind. By combining folded sheet metal components with standard structural steel sections, the design reduces fabrication complexity while maintaining excellent structural performance.
Optimizing a design for manufacturing not only lowers production costs but also improves assembly speed, simplifies maintenance, and enhances long-term reliability.
